Sandpointe 14522A
2 Bed
1 Bath
710 Sq. Ft.
52' x 13' 8"

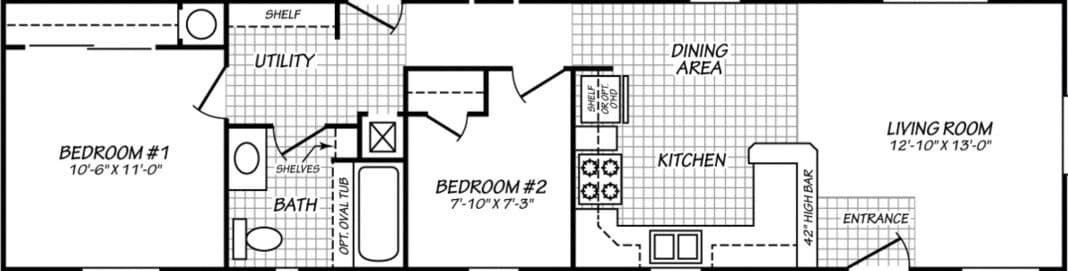

Floor Plan

    Sandpointe 14522a floor plan home features

    Property map

    Enter your address to check if this home fits on your property

    Enter an address to find homes that fit your lot


    Virtual Tour

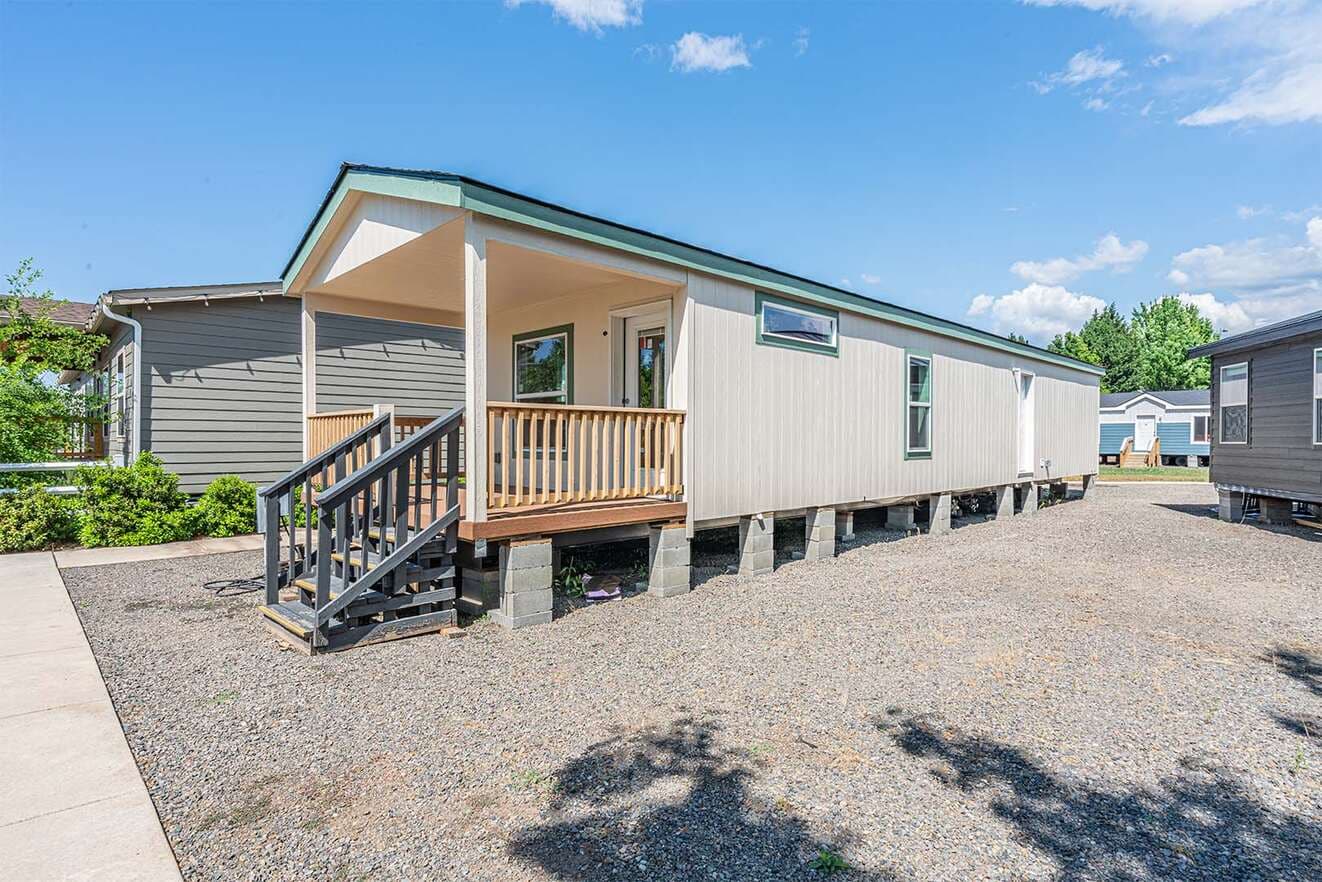

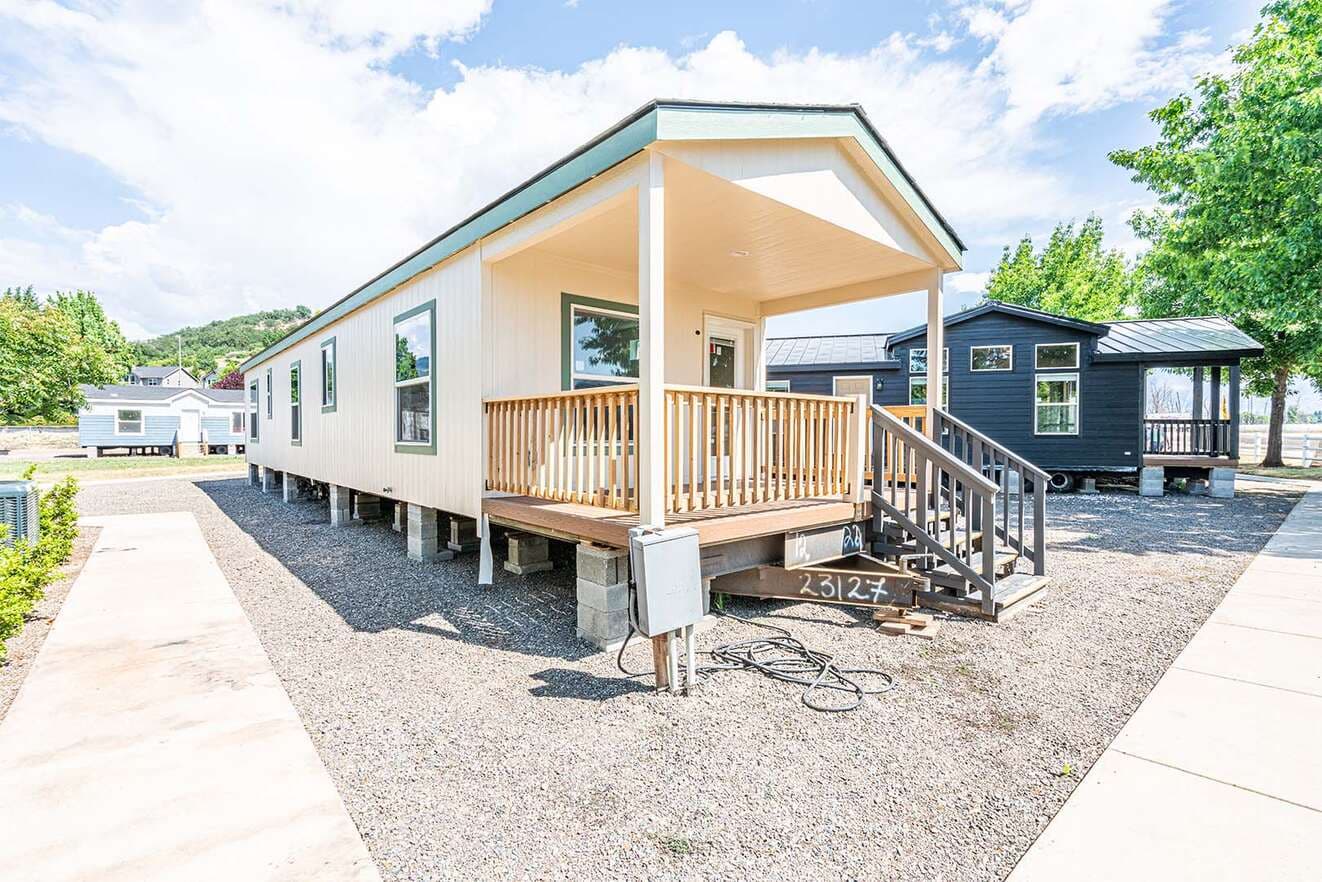

    Exterior & Construction

    • Insulation: Ceilings/Walls/Floors: R-40 Ceiling, R-21 Walls, R-33 Floors. Energy Star Standard
    • Window Type: Low-E vinyl windows with argon gas
    • Floor Joists: 2 x 6 16” O.C.
    • Floor Decking: 4’ x 8’ x 19/32” tongue and groove OSB
    • Exterior Siding Type: LP SmartSide Panel
    • Exterior Window Trim: 4" Trim All Sides
    • Dormers & Exterior Trim: Dormer standard multi-section only - see print for size and location. Specific sizes available only.
    • Sidewalls: 2 X 6 at 16" OC / 96” Height- Flat Ceiling.
    • Shingles: Architectural with Limited Lifetime warranty.
    • Standard Roof Load: 20 Pound w/Trusses 24" OC
    • Exterior Entry Doors: Front-36" Inswing with deadbolt knocker and peephole, Rear 32” Inswing with deadbolt
    • Eaves & Overhang: Single wide = 6", Double-wide=6", sidewalls and end walls. Screens vented.
    • Roof Pitch: 3/12 Multi Section/ 4/12 Single Section
    • Set Back Frame (Foundation Ready): Optional

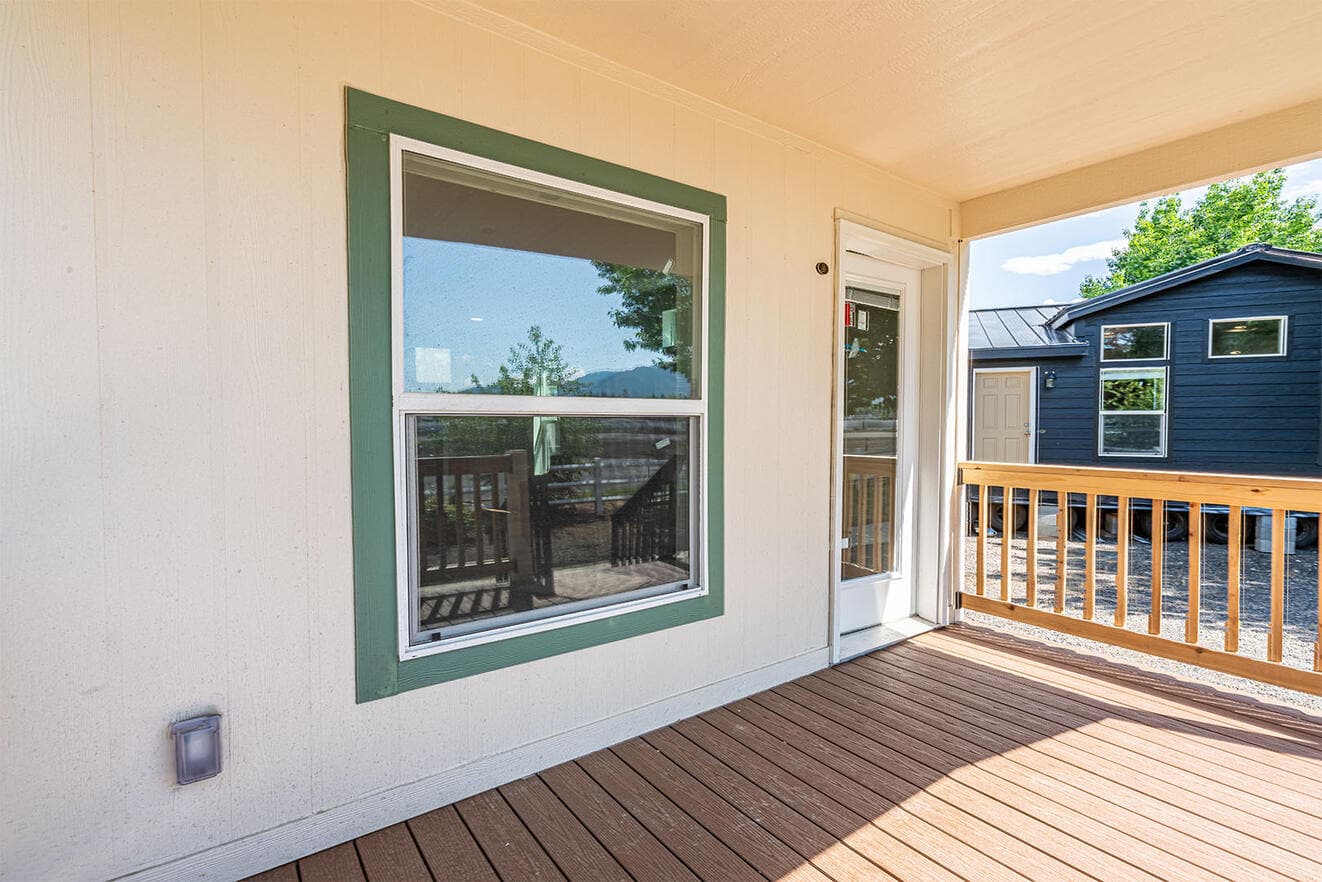

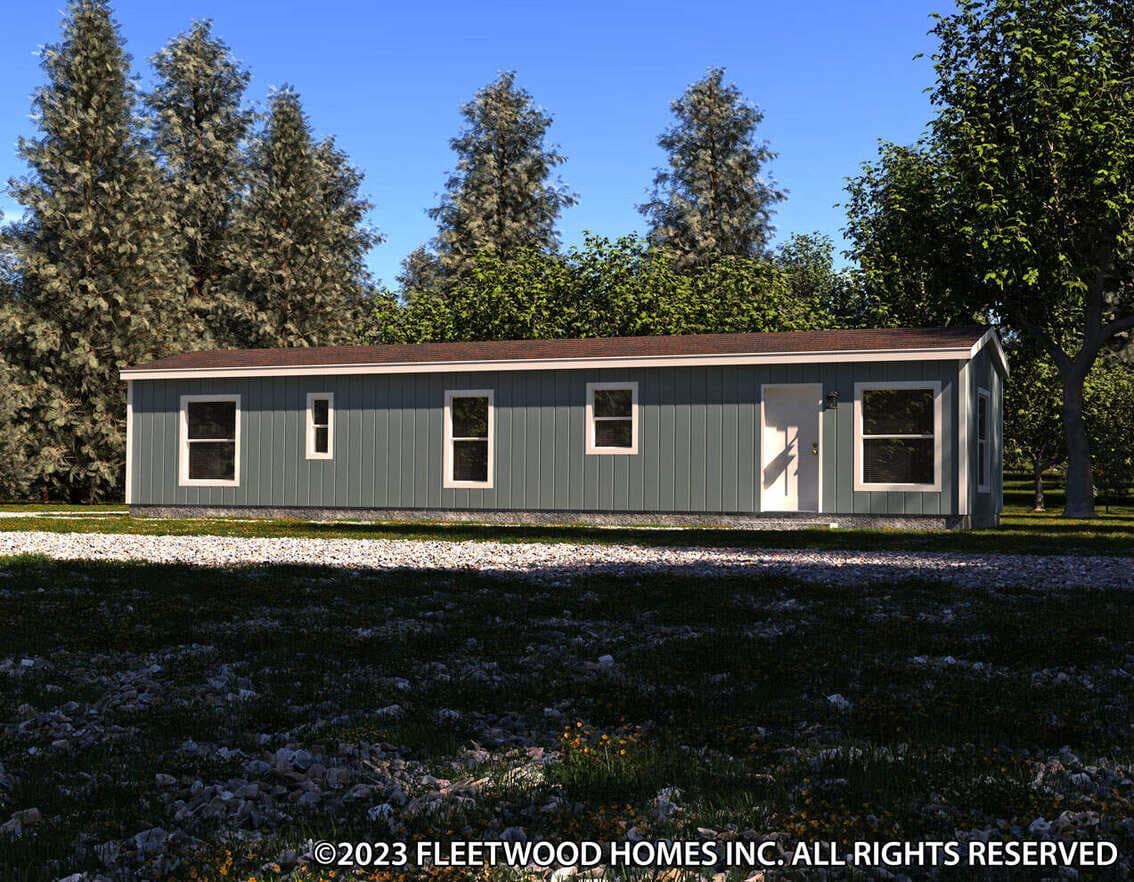

    Sandpointe 14522a hero, elevation, and exterior home features

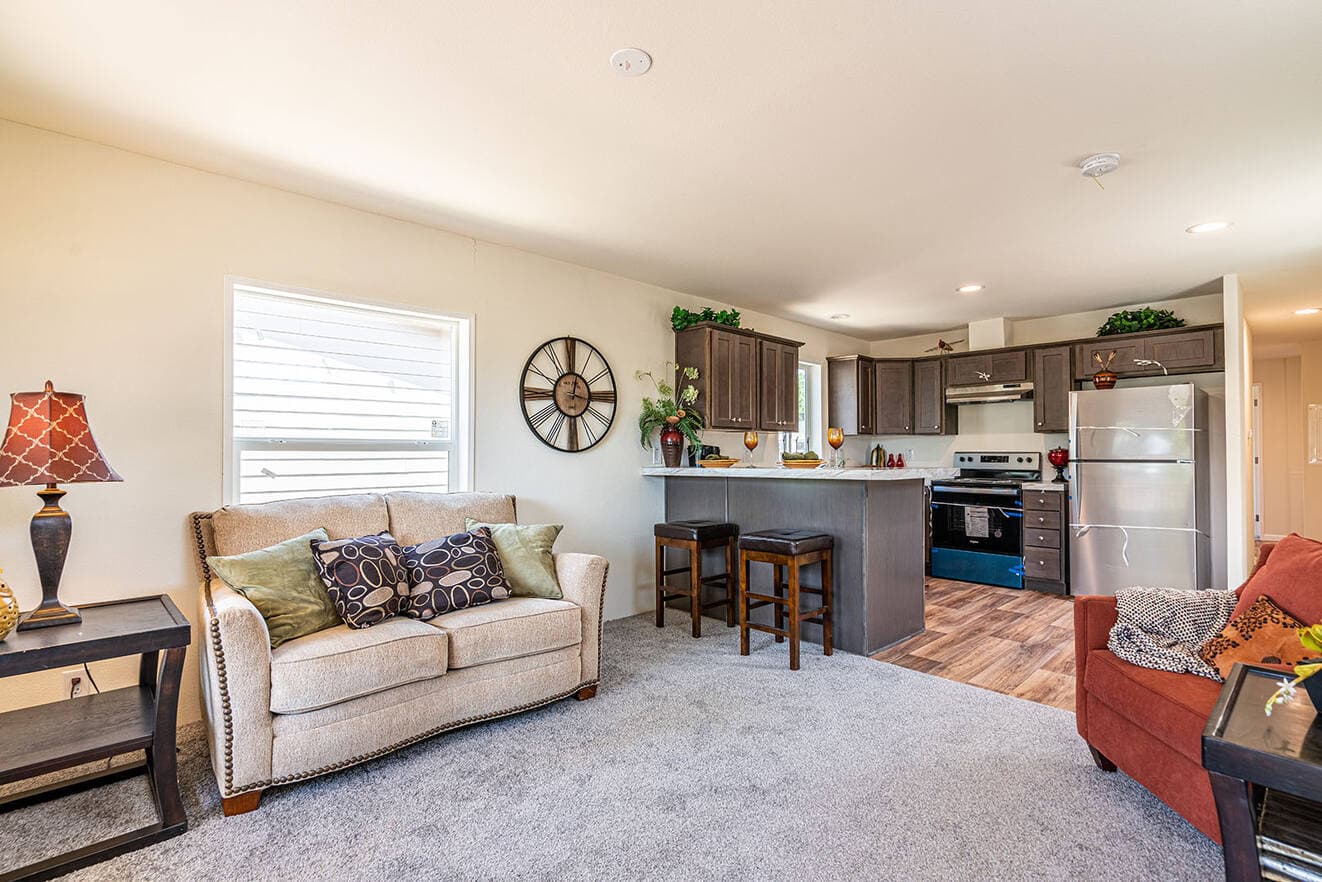

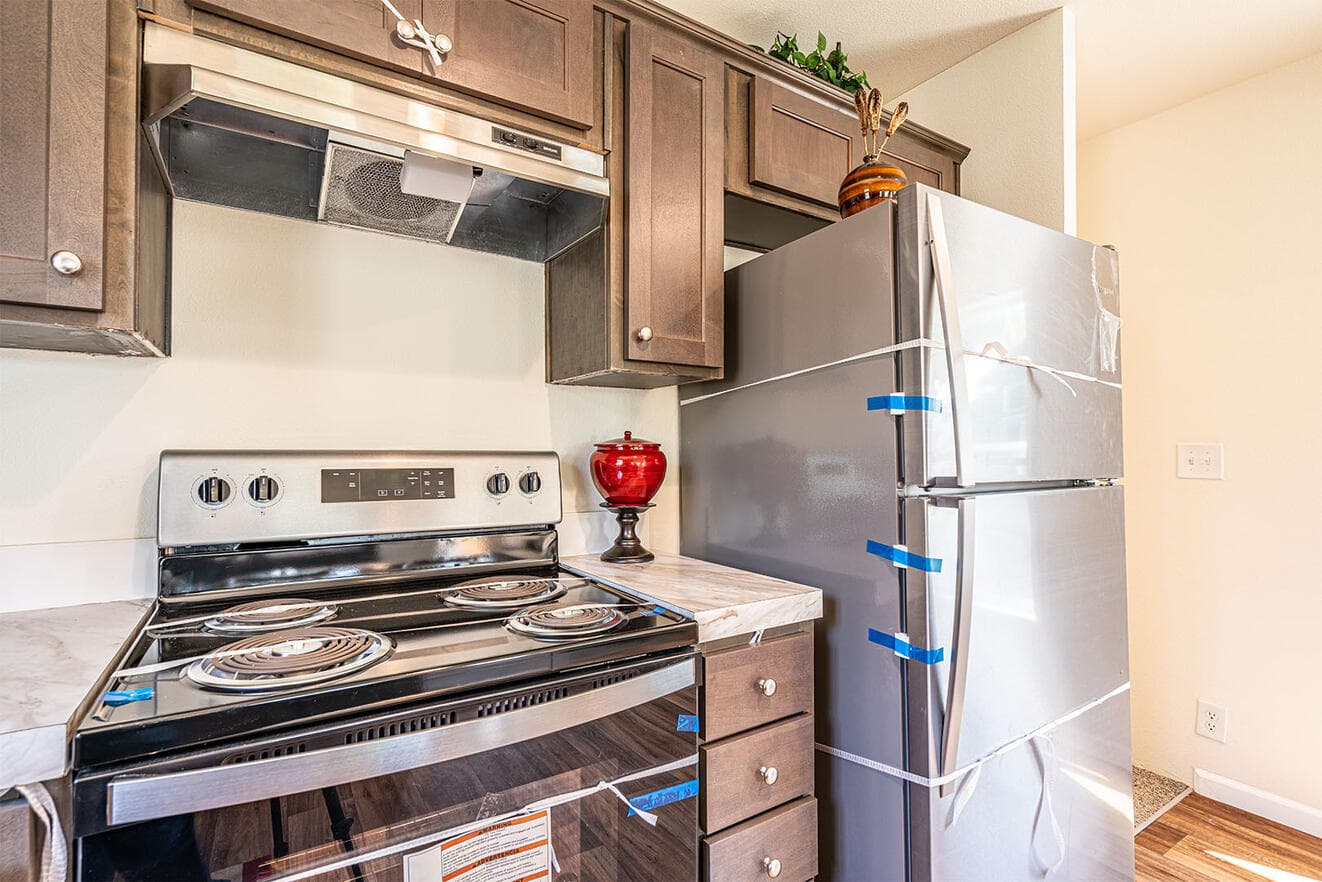

    Kitchen

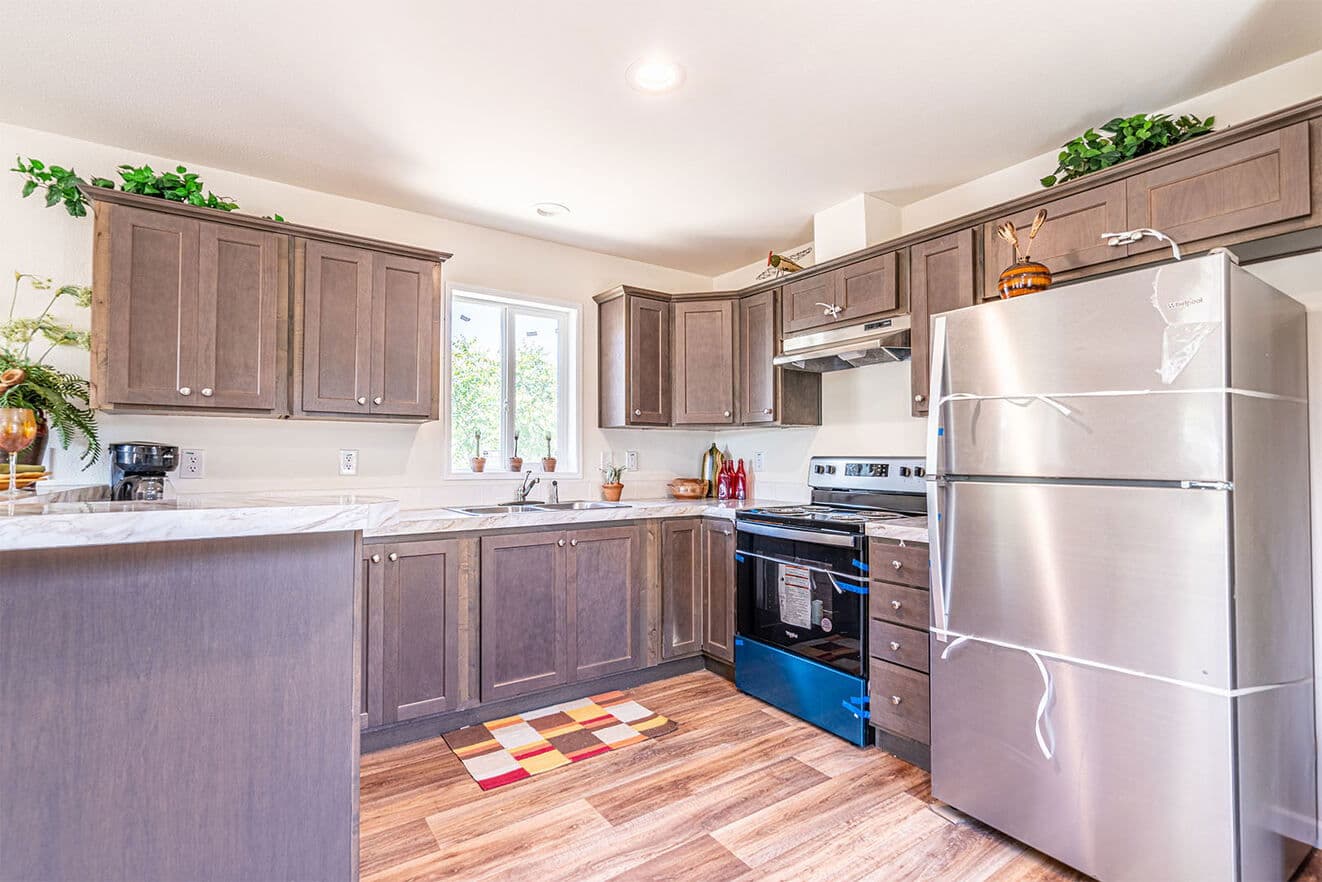

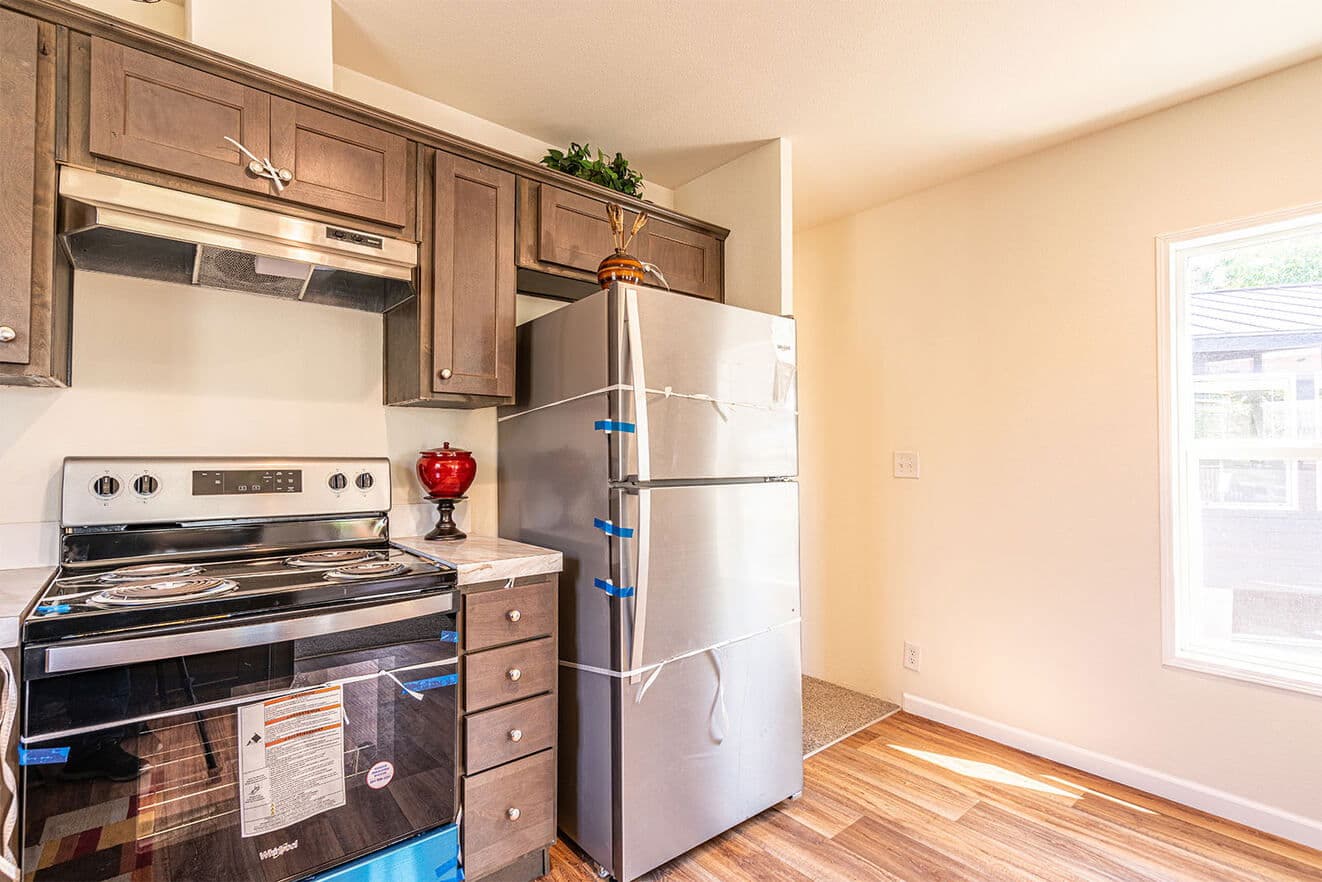

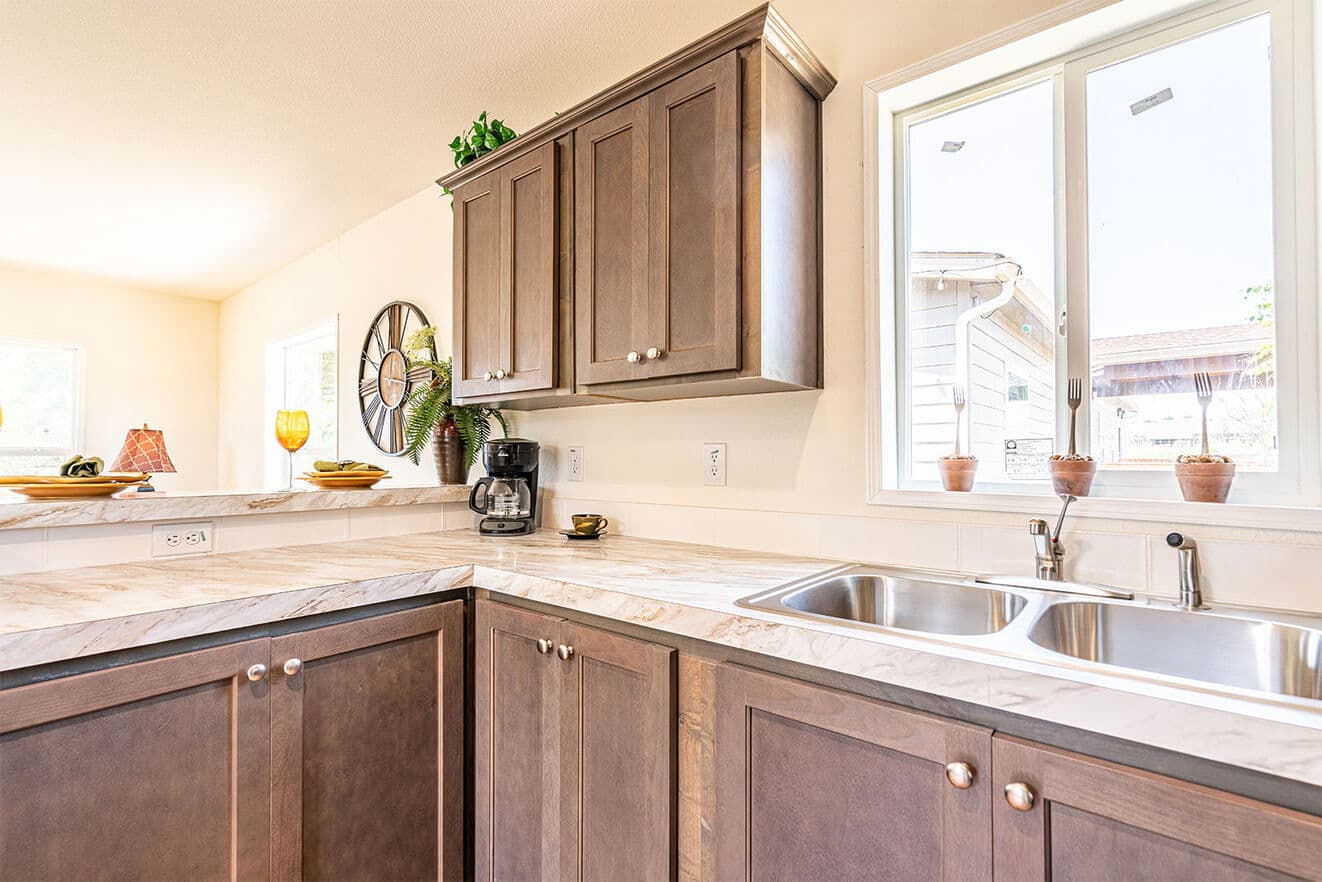

      Sandpointe kitchen home features

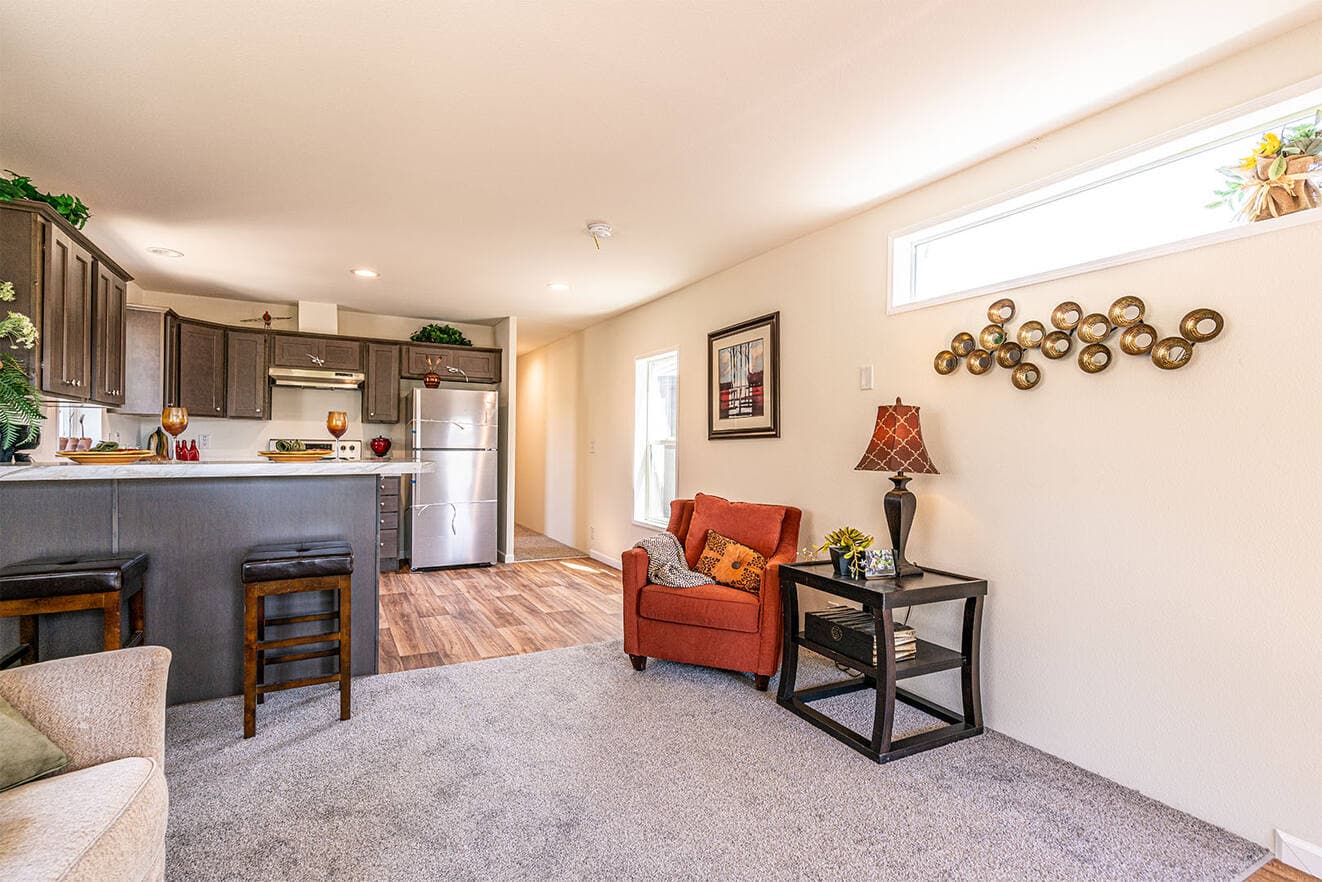

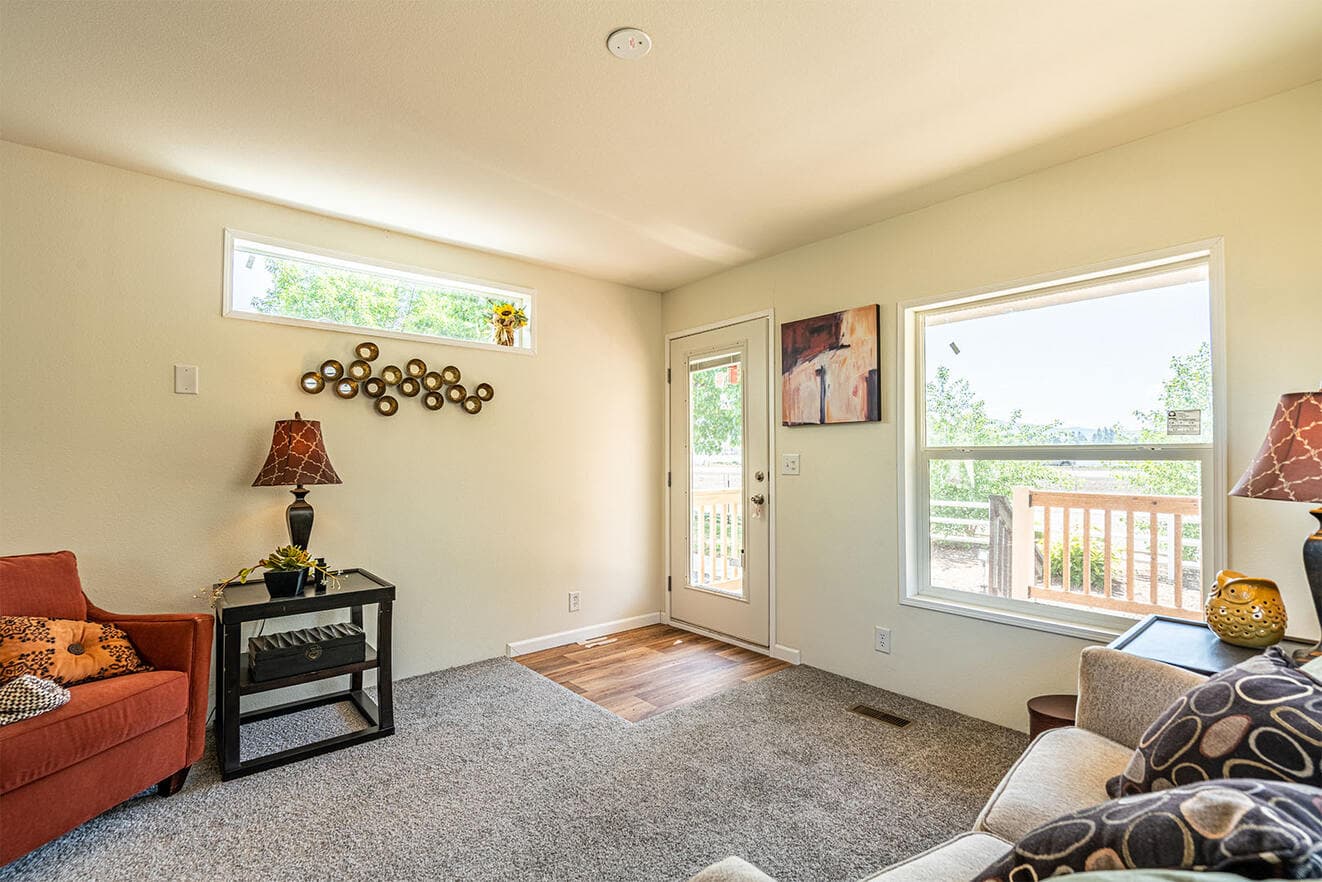

      Interior

      • Window Sills & Trim: White finished sills (not T/T) w/lip molding
      • Sheetrock Thickness: 1/2" High Density (ceiling); 1/2" Standard (walls)
      • Closet Shelves: Wire shelves location per print.
      • Tape & Texture Interior Wall Finish: Standard w/square corners throughout.
      • Interior Wall Paint: Creamy throughout standard.
      • Ceiling Paint: Matches primary wall paint.
      • Interior Ceiling to Wall Transition: Caulked and painted.
      • Coffered Ceiling: Optional - plan specific.
      • Base Molding: 3-1/4” in lino areas. Optional all other areas.
      • Interior Doors: White raised 2 panel.
      • Door Trim: 2 ¼” Waterfall
      • Door Stops: None
      • Door Handles: Round brushed nickel
      • Wardrobe Doors: White raised 2 panel
      • Cabinet Type: Knotty Alder raised panel doors. Knotty Alder face frame and side panels with hidden hinges. All cabinets have light maple color lined interiors.
      • Kitchen Overhead Cabinets: 30” tall with one adjustable shelf.
      • Cabinet Hardware: Brushed nickel knobs on cabinet doors and drawers.
      • Range Hood Overhead Cabinet: Standard
      • Refer Overhead: Overhead cabinet
      • Washer/Dryer Overhead: Wire Shelf, Cabinet(s) Optional
      • Kitchen Drawers: Drawer Bank - drawers over optional.
      • Cabinet Crown Molding: Yes
      • Bathroom Drawer Bank: Optional. Not all baths will have room for drawers.
      • Backsplash - Kitchen and Baths: 4” Laminate
      • Bar Back Finish: Matches cabinet
      • Countertop Self Edge: Laminate
      • Bathroom Lavy Cabinet: Full door - no cubbies. Med cabinet is optional.
      • Carpet & Carpet Pad: Level 1 carpet & 3/8" rebond carpet pad
      • Linoleum: Kitchen, baths, entry and utility. Dining room is linoleum in some plans and carpet in others. Hall and closets vary per print.
      • Main Entry Floor Covering: Lino
      • Mini Blinds: Optional


      Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.

      Sandpointe 14522A

      2 bedrooms (sleeps 2-4)

      1 full bathroom

      710 sq. ft.

      52' x 13' 8"

      ADU eligible

      Design home
      Sandpointe standard features

      Construction

      • Insulation: Ceilings/Walls/Floors: R-40 Ceiling, R-21 Walls, R-33 Floors. Energy Star Standard
      • Window Type: Low-E vinyl windows with argon gas
      • Floor Joists: 2 x 6 16” O.C.
      • Floor Decking: 4’ x 8’ x 19/32” tongue and groove OSB
      • Exterior Siding Type: LP SmartSide Panel
      • Exterior Window Trim: 4" Trim All Sides
      • Dormers & Exterior Trim: Dormer standard multi-section only - see print for size and location. Specific sizes available only.
      • Sidewalls: 2 X 6 at 16" OC / 96” Height- Flat Ceiling.
      • Shingles: Architectural with Limited Lifetime warranty.
      • Standard Roof Load: 20 Pound w/Trusses 24" OC
      • Exterior Entry Doors: Front-36" Inswing with deadbolt knocker and peephole, Rear 32” Inswing with deadbolt
      • Eaves & Overhang: Single wide = 6", Double-wide=6", sidewalls and end walls. Screens vented.
      • Roof Pitch: 3/12 Multi Section/ 4/12 Single Section
      • Set Back Frame (Foundation Ready): Optional

      Interior

      • Window Sills & Trim: White finished sills (not T/T) w/lip molding
      • Sheetrock Thickness: 1/2" High Density (ceiling); 1/2" Standard (walls)
      • Closet Shelves: Wire shelves location per print.
      • Tape & Texture Interior Wall Finish: Standard w/square corners throughout.
      • Interior Wall Paint: Creamy throughout standard.
      • Ceiling Paint: Matches primary wall paint.
      • Interior Ceiling to Wall Transition: Caulked and painted.
      • Coffered Ceiling: Optional - plan specific.
      • Base Molding: 3-1/4” in lino areas. Optional all other areas.
      • Interior Doors: White raised 2 panel.
      • Door Trim: 2 ¼” Waterfall
      • Door Stops: None
      • Door Handles: Round brushed nickel
      • Wardrobe Doors: White raised 2 panel
      • Cabinet Type: Knotty Alder raised panel doors. Knotty Alder face frame and side panels with hidden hinges. All cabinets have light maple color lined interiors.
      • Kitchen Overhead Cabinets: 30” tall with one adjustable shelf.
      • Cabinet Hardware: Brushed nickel knobs on cabinet doors and drawers.
      • Range Hood Overhead Cabinet: Standard
      • Refer Overhead: Overhead cabinet
      • Washer/Dryer Overhead: Wire Shelf, Cabinet(s) Optional
      • Kitchen Drawers: Drawer Bank - drawers over optional.
      • Cabinet Crown Molding: Yes
      • Bathroom Drawer Bank: Optional. Not all baths will have room for drawers.
      • Backsplash - Kitchen and Baths: 4” Laminate
      • Bar Back Finish: Matches cabinet
      • Countertop Self Edge: Laminate
      • Bathroom Lavy Cabinet: Full door - no cubbies. Med cabinet is optional.
      • Carpet & Carpet Pad: Level 1 carpet & 3/8" rebond carpet pad
      • Linoleum: Kitchen, baths, entry and utility. Dining room is linoleum in some plans and carpet in others. Hall and closets vary per print.
      • Main Entry Floor Covering: Lino
      • Mini Blinds: Optional

      Mechanical

      • Bedroom Lighting: Recessed LED can light
      • Dining Room Lighting: Recessed LED can lights per print.
      • Kitchen Lighting: Recessed LED can lights per print.
      • Exterior Lights: Black Coach lights - both front and back doors.
      • Bathroom Lighting: Bath 1: recessed LED can lights. Guest: recessed LED can lights. Amount varies per floor plan. Cosmetic lights are optional.
      • Wire & Brace For Ceiling Fan(s): Optional
      • TV/Phone Boxes - Rough In With Raceways - Not Wired: Optional
      • Electrical Service Main Panel: 200 AMP
      • Master Bath Tub/Shower: 60” Fiberglass tub/shower with shower head.
      • Guest Bath Tub/Shower: 60" fiberglass tub/shower
      • Bath Sinks & Toilets: China and elongated toilet
      • Bath Sink Faucets & Tub/Shower Faucets: Single lever brushed nickel on sinks, tub and/or shower.
      • Bathroom Mirrors: 24” x 42” over both sink and optional sink locations (generally two in master bath)
      • Towel Bar/Tissue Holders: Optional
      • Kitchen Sink: 8" deep stainless steel
      • Kitchen Faucet: Single Lever with pull-out side sprayer

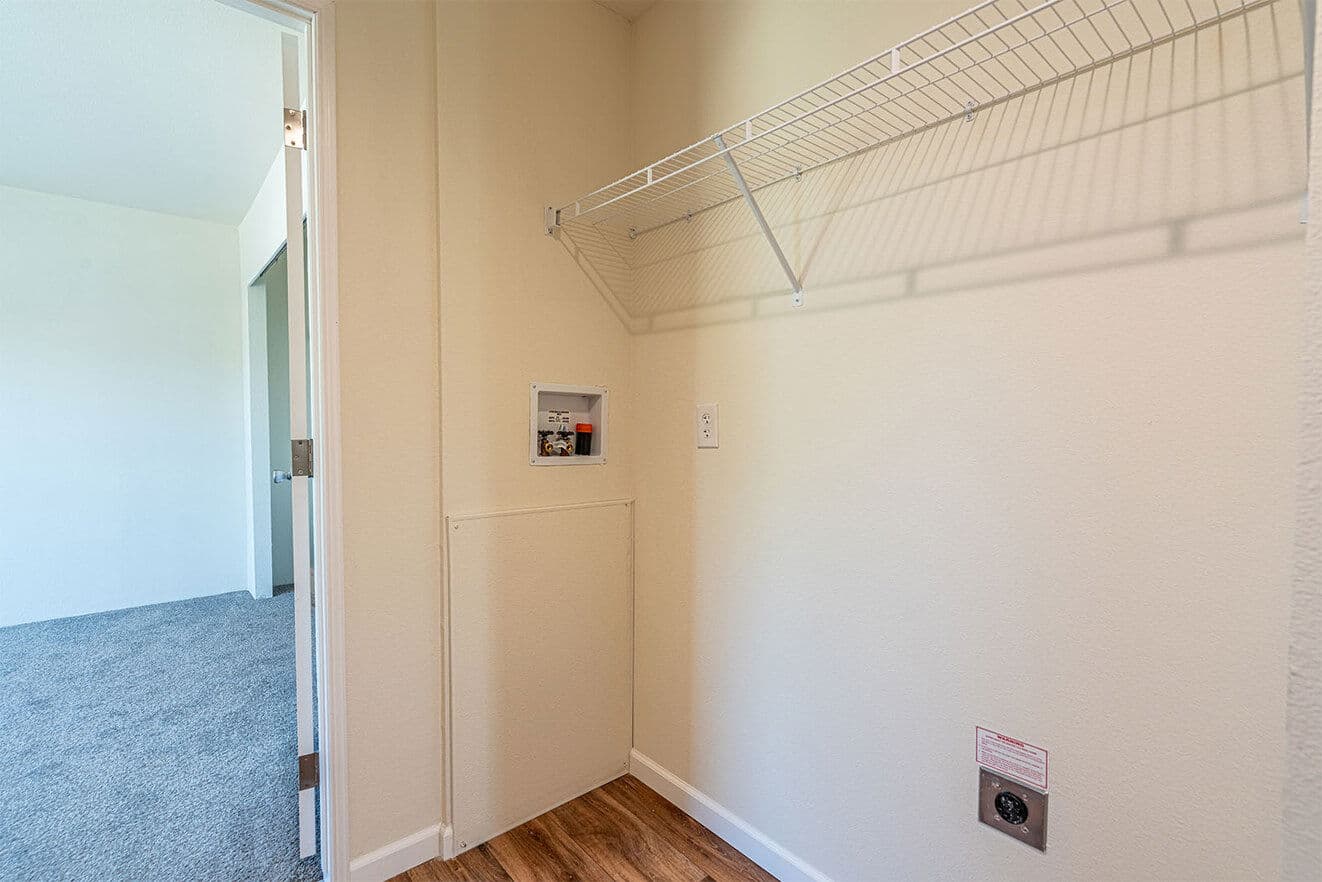

      • Plumb for Washing Machine: Standard
      • Wire for Clothes Dryer: Standard
      • Shut-Off Valves: Individual standard. Whole House optional.
      • Exterior Water Faucet: Optional in pre-determined locations.
      • Heating System: Electric forced air furnace and ducts. Standard digital set-back thermostat.
      • Water Heater: 30 Gallon on Single Wide; 50 Gallon on Multi-Section

      Other

      • Appliances Color: Stainless Steel
      • Refrigerator: 18 Cubic Feet Frost Free. Plumb for ice/water is optional.
      • Range: 30" Electric range with window and clock.
      • Dishwasher: Optional
      • Microwave: Optional
      • Range Hood: 30" Stainless Steel
      • Fireplace: Not Applicable
